Features
& Benefits

  • Internal vertical and horizontal Kevlar strip applications at cams – Maintain stability and define shape profiles
  • Racingblade mast-pocket construction features mast panel and 2-mm. Triax mast-pocket sides (3 layers) that are tensioned directly (all 3 layers under tack pulley webbings) – Therefore downhaul tension is equalized between the mast panel and the mast pocket, resulting in the Racingblade’s firm, clean, easy-rotating leading edge
  • Blade mast-pocket construction – Equalized loading between the mast panel (interior) and the pocket (exterior) – The result is tensioned, firm mast pockets, exceptional durability, rotation ease
  • 4-mm. Dimension Polyant monofilm body panels – proven superior performance
  • Tubed battens with varying carbon content according to performance. The top 3 are specialized 100% carbon tubes – Carbon tubes deliver superior stiffness to maximize stability for your upper end
  • Slick Tekcam2 rotation. (Tekcam2 Large for SDM also supplied) – Easy cam rotation makes your windsurfing experience more enjoyable
  • Metallic cam interfaces – MCIs eliminate contact point degradation characteristic of cam designs without MCIs
  • Centered battens in X-Ply sleeves. (Alternate pocket sides) – Using similar material for the batten pocket as the body material minimizes asymmetric character of Dacron batten pocket construction that, due to Dacron stretch, allows the batten to stay on the sail side. Pockets made with laminate pockets force the batten to stay centered. This is important to keep the sail symmetrical. – If all batten pockets are Dacron, and mounted on the same side of the sail – the sail will be biased to one tack and rotate unevenly. Loftsails X-Ply batten pockets that alternate sides limit asymmetric character

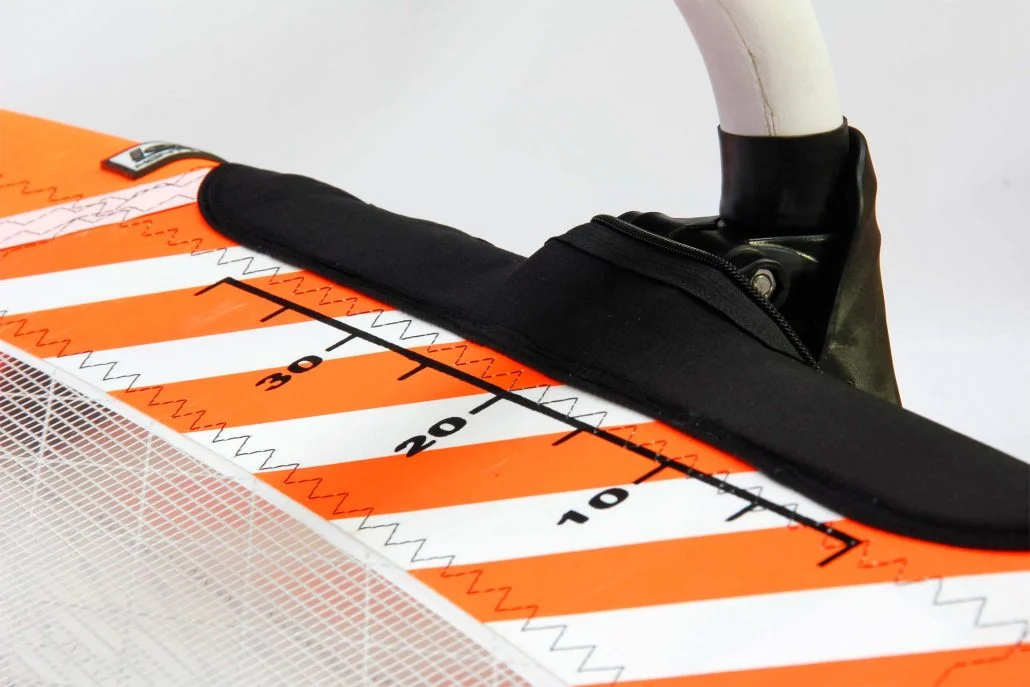

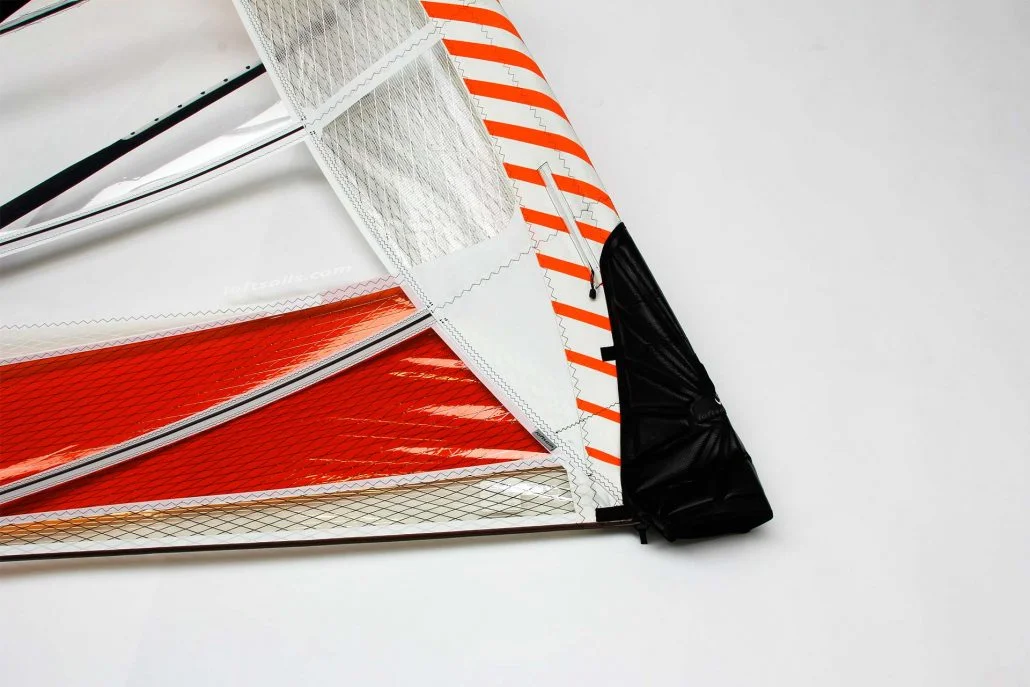

  • Streamlined neoprene boom cutout with dual zippers – limits water entry into the mast sleeve during falls, keeping the rig light for a fast recovery
  • RDM/SDM compatible – Both mast types fully compatible to maximize your windsurfing experience
  • 7-mm. monofilm vertical internal panel (inside mast-pocket) – For profile stability

Colorways

Sail Specifications

Description Size Luff Boom Vario Top Extension Cambers Battens Recommended Mast Weight
Racing Blade 5.0 Orange 20175.0 m2414 cm174 cmFixed14 cm47400 TEAM EDITION SDM (RDM0/SDM)5.26 kg
Racing Blade 5.6 Orange 20175.6 m2430 cm186 cmFixed30 cm47400 TEAM EDITION SDM (RDM0/SDM)5.52 kg
Racing Blade 6.3 Orange 20176.3 m2450 cm198 cmFixed20 cm47430 TEAM EDITION SDM (RDM/SDM)5.79 kg
Racing Blade 7.0 Orange 20177.0 m2468 cm206 cmFixed38 cm47430 TEAM EDITION SDM (RDM/SDM)6.03 kg
Racing Blade 7.8 Orange 20177.8 m2490 cm218 cmFixed30 cm47460 TEAM EDITION SDM (RDM/SDM)6.34 kg
Racing Blade 8.6 Orange 20178.6 m2510 cm232 cmFixed20 cm47490 TEAM EDITION SDM (RDM/SDM)6.67 kg
Racing Blade 9.2 Orange 20179.2 m2526 cm238 cmFixed36 cm47490 TEAM EDITION SDM (RDM/SDM)6.86 kg
Racing Blade 9.6 Orange 20179.6 m2542 cm244 cmFixed22 cm47520 TEAM EDITION SDM (RDM/SDM)7.06 kg

Ask Monty

"When you have a technical related product question."

Write a question

Preferred Webshop

"When you want to buy online direct out of stock."

Buy now

Warranty

"Sorry to hear this happened, let's work out a solution"

Apply

Share your feedback

"Help us to improve to make our products even better than they are."

Give feedback

Nearest dealer

"Visit your nearest local shop who stock Loftsails."

Find out

Frequently
asked questions?

What does 1 Year Unconditional + 1 Year Conditional warranty cover?

Warranty is valid 2 years after date of purchase. When making a warranty claim in the first year the product is unconditionally warranted. When making a warranty claim in the 2nd year the product must have clearly suffered from a manufacturer error.
