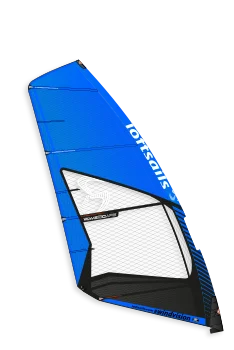

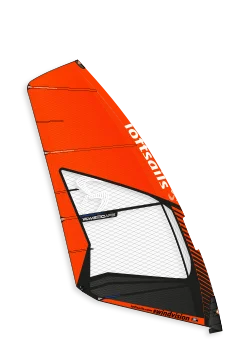

Wavescape 2018 MANOEUVRE WAVE 4-BATTEN

Colorways

Features
& Benefits

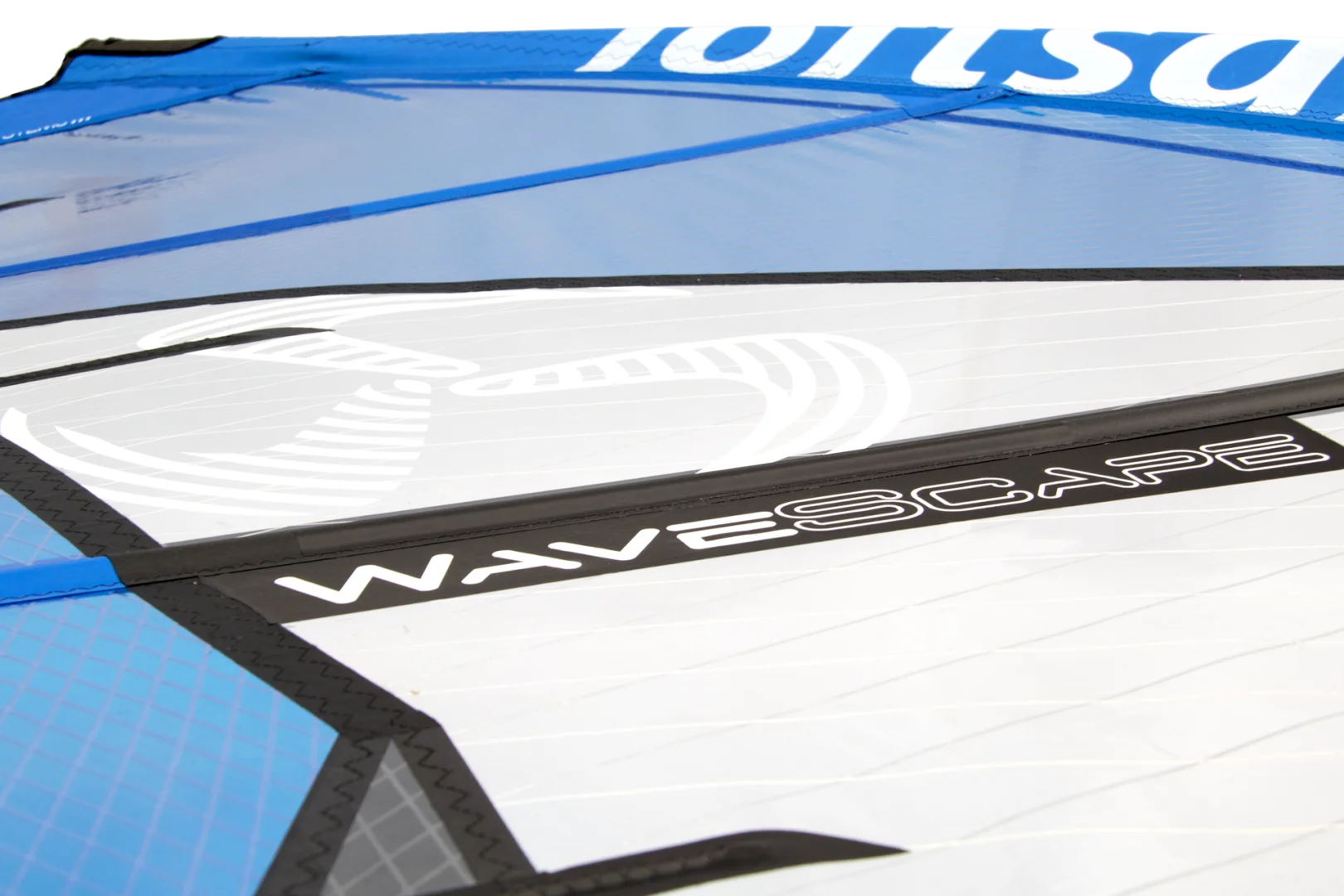

  • Exclusive 3.5 mil Biax body panels – reliability in the rinse cycle and UV longevity.
  • 4 mil Biax window panels – durable visibility

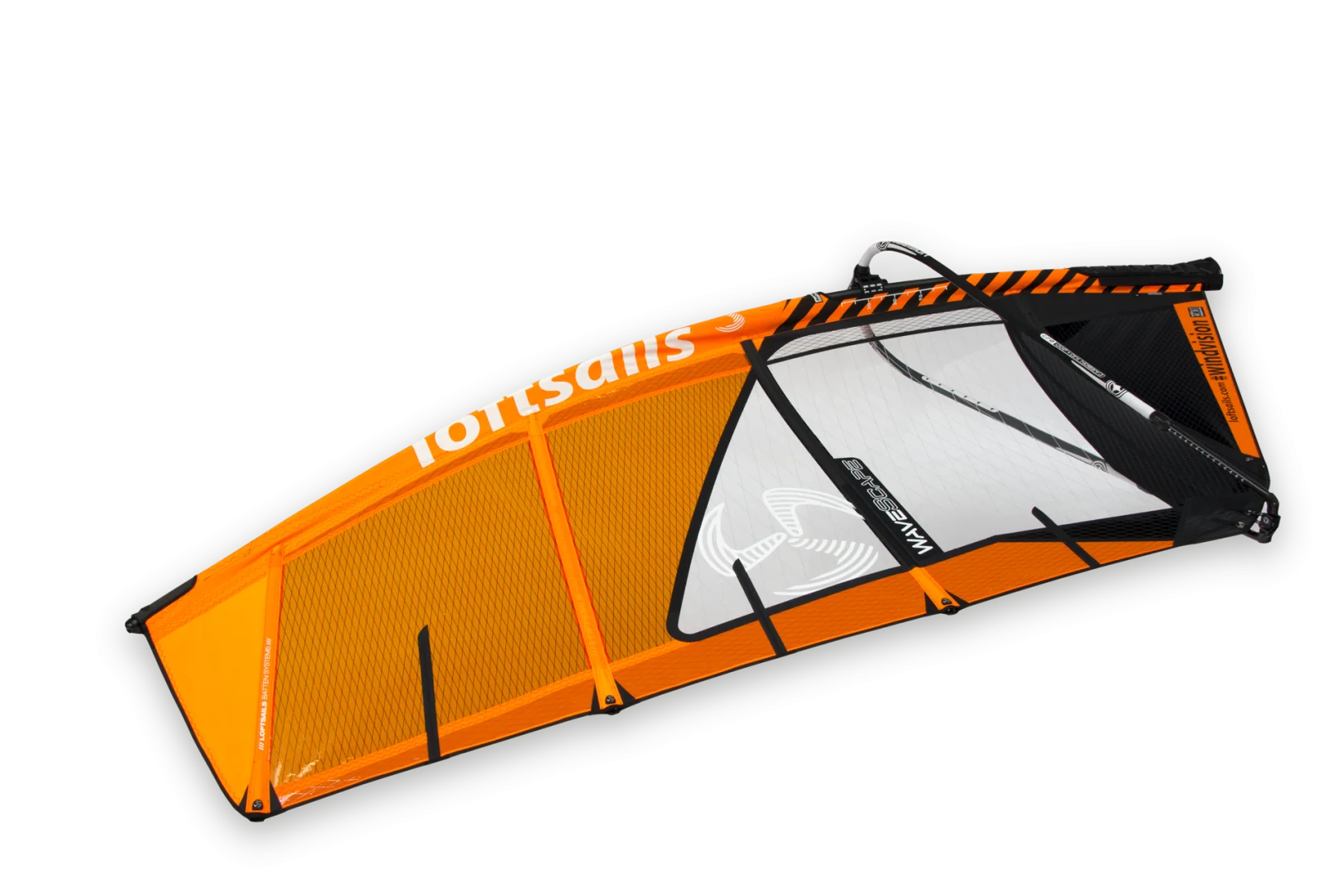

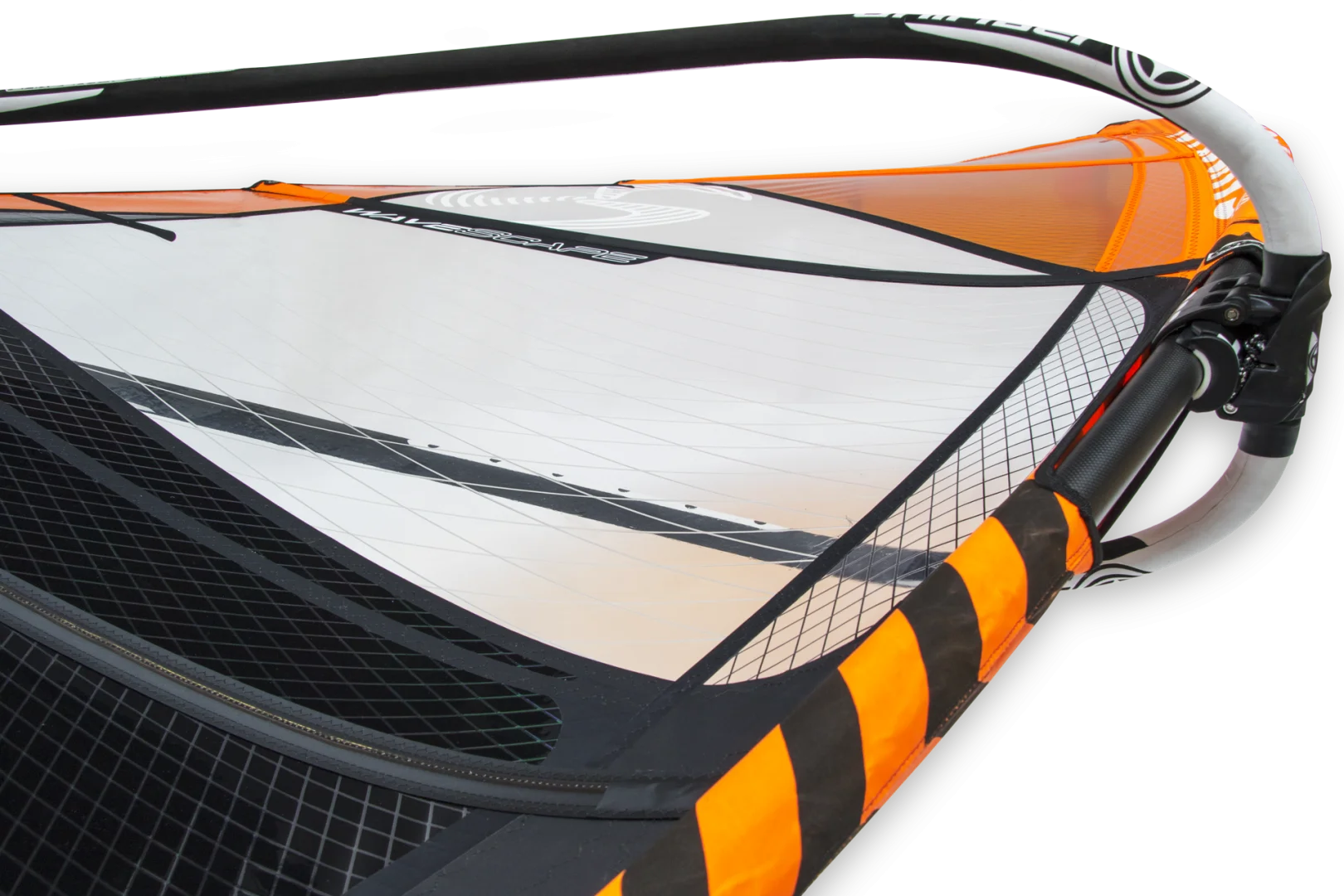

  • Unique, super durable full IYU250 4-part mast-pocket construction – the perfect material between your mast and the elements.
  • RDM recommended. SDM compatible – both mast types fully compatible to maximize your windsurfing experience
  • Triple foot and triple reinforced luff construction – maximized longevity
  • 5 mil Triax-laminate luff and foot panels – profile stability in radical conditions.
  • Higher aspect ratio and modified foot batten position for improved dynamic handling.
  • Forward-profile batten systems with Standing Battens at specific locations – responsive, low-end drive and easy upper end handling
  • Dual clew eyelets with webbings – adjust leech-release character to suit your sailing conditions
Click to reveal features.

Design Testimonial

By Monty Spindler

“When waves approach Tarifa the stoke is amplified with the light, responsive Wavescape.”

Sail Specifications

Description Size Luff Boom Vario Top Extension Cambers Battens Recommended Mast Weight
Wavescape 3.7 Blue 20183.7 m2352 cm154 cmVario Top12 cm04Team Edition RDM/SDM 3402.83 kg
Wavescape 3.7 Orange 20183.7 m2352 cm154 cmVario Top12 cm04Team Edition RDM/SDM 3402.83 kg
Wavescape 4.0 Blue 20184.0 m2360 cm160 cmVario Top20 cm04Team Edition RDM/SDM 3402.92 kg
Wavescape 4.0 Orange 20184.0 m2360 cm160 cmVario Top20 cm04Team Edition RDM/SDM 3402.92 kg
Wavescape 4.2 Blue 20184.2 m2370 cm162 cmFixed30 cm04Team Edition RDM/SDM 3402.97 kg
Wavescape 4.2 Orange 20184.2 m2370 cm162 cmFixed30 cm04Team Edition RDM/SDM 3402.97 kg
Wavescape 4.5 Blue 20184.5 m2384 cm166 cmFixed14 cm04Team Edition RDM/SDM 3703.07 kg
Wavescape 4.5 Orange 20184.5 m2384 cm166 cmFixed14 cm04Team Edition RDM/SDM 3703.07 kg
Wavescape 4.7 Blue 20184.7 m2396 cm170 cmFixed26 cm04Team Edition RDM/SDM 3703.21 kg
Wavescape 4.7 Orange 20184.7 m2396 cm170 cmFixed26 cm04Team Edition RDM/SDM 3703.21 kg
Wavescape 5.0 Blue 20185.0 m2410 cm174 cmFixed40 cm04Team Edition RDM/SDM 3703.35 kg
Wavescape 5.0 Orange 20185.0 m2410 cm174 cmFixed40 cm04Team Edition RDM/SDM 3703.35 kg
Wavescape 5.4 Blue 20185.4 m2426 cm180 cmFixed26 cm04Team Edition RDM/SDM 4003.5 kg
Wavescape 5.4 Orange 20185.4 m2426 cm180 cmFixed26 cm04Team Edition RDM/SDM 4003.5 kg
Wavescape 5.7 Blue 20185.7 m2440 cm186 cmFixed10 cm04Team Edition RDM/SDM 4303.62 kg
Wavescape 5.7 Orange 20185.7 m2440 cm186 cmFixed10 cm04Team Edition RDM/SDM 4303.62 kg
Wavescape 6.2 Blue 20186.2 m2458 cm192 cmFixed28 cm04Team Edition RDM/SDM 4303.78 kg
Wavescape 6.2 Orange 20186.2 m2458 cm192 cmFixed28 cm04Team Edition RDM/SDM 4303.78 kg

Frequently asked questions?

Find the answers of your Wavescape 2018 questions
Just click the box below.

I can see minor colour inconsistancy in the coloured monofilm material, is this a quality problem?

Loftsails using high quality Dimension Polyant films considered as a leading film manufacturer. The BI-PLY colored monofilm are two films laminated together. During production there is a large temperature difference between the two films at the lamination point. This causes the top film (film with color adhesive) to slightly shrink and the bottom film does not shrink at the same rate. This can cause "a slight minimal wave or impression" in the fabric. There is no concern on laminate quality.

What does 1 Year Unconditional + 1 Year Conditional warranty cover?

Warranty is valid 2 years after date of purchase. When making a warranty claim in the first year the product is unconditionally warranted. When making a warranty claim in the 2nd year the product must have clearly suffered from a manufacturer error.

When unrolling my sail some battens are looking pre-curved?

All windsurfing sails with battens experience batten bending when rolling for transport. The battens will bend because of the curves cut into the sail to produce profile. Loftsails are rolled right side up, this flexes the battens as if the sail is on starboard tack. Battens are made from polyester, carbon and resin. They remember their being curved, which gives the sail a pre-disposition to be on starboard tack. This results in the sail having a preference to be on starboard tack. This asymmetric character is normally not an issue. Rolling the sail port side up will tend to bend the battens in the opposite direction which can minimize this asymmetric character.

Why are there small wrinkels visible in the footpanel of my sail?

Monty comments: Wrinkles in the foot panel are common to my designs! There is always alot of profile worked into the bottom of the vertical seam, I have tried to remove the wrinkles from the lower panel but this results in flatter shapes that do improve performance. Many of our sails do not show such foot panel wrinkles, however unfortunately one could say they are typical of my designs.
